WHAT IS .NET,CLR,CLS,CTS,MSIL CODE,JIT COMPILER

.NET Framework (.NET)

Definition - What does .NET Framework (.NET) mean?

The .NET framework is a software development framework from Microsoft. It provides a controlled programming environment where software can be developed, installed and executed on Windows-based operating systems.
The principal design features are:

• Interoperability: This allows for .NET-developed programs to access functionalities in programs developed outside .NET.
• Common Runtime Engine: Also known as the common language runtime, this allows programs developed in .NET to exhibit common behaviors in memory usage, exception handling and security.
• Language Independence: Common language infrastructure specifications (CLI) allow for the exchange of data types between two programs developed in different languages.
• Base Class Library: A library of code for most common functions--used by programmers to avoid repetitive rewriting of code.
• Ease of Deployment: There are tools to ensure the ease of installing programs without interfering with previously installed applications.
• Security: Programs developed in .NET are based on a common security model.

How to Microsoft .Net Framework

Microsoft .Net Languages Source Code are compiled into Microsoft Intermediate Language (MSIL) . MSIL we can call it as Intermediate Language (IL) or Common Intermediate Language (CIL). Microsoft Intermediate Language (MSIL) is a CPU independent set of instructions that can be converted to the native code. Metadata also created in the course of compile time with Microsoft Intermediate Language (MSIL) and stored it with the compiled code . Metadata is completely self-describing . Metadata is stored in a file called Manifest, and it contains information about the members, types, references and all the other data that the Common Language Runtime (CLR) needs for execution .

The Common Language Runtime (CLR) uses metadata to locate and load classes, generate native code, provide security, and execute Managed Code. Both Microsoft Intermediate Language (MSIL) and Metadata assembled together is known as Portable Executable (PE) file. Portable Executable (PE) is supposed to be portable across all 32-bit operating systems by Microsoft .Net Framework.

During the runtime the Common Language Runtime (CLR)'s Just In Time (JIT) compiler converts the Microsoft Intermediate Language (MSIL) code into native code to the Operating System. The native code is Operating System independent and this code is known as Managed Code , that is, the language's functionality is managed by the .NET Framework . The Common Language Runtime (CLR) provides various Just In Time (JIT) compilers, and each works on a different architecture depends on Operating Systems, that means the same Microsoft Intermediate Language (MSIL) can be executed on different Operating Systems. From the following section you can see how Common Language Runtime (CLR) functions .

Microsoft Intermediate Language - MSIL

MSIL stands for Microsoft Intermediate Language. We can call it as Intermediate Language (IL) or Common Intermediate Language (CIL). During the compile time , the compiler convert the source code into Microsoft Intermediate Language (MSIL) .Microsoft Intermediate Language (MSIL) is a CPU-independent set of instructions that can be efficiently converted to the native code. During the runtime the Common Language Runtime (CLR)'s Just In Time (JIT) compiler converts the Microsoft Intermediate Language (MSIL) code into native code to the Operating System.

When a compiler produces Microsoft Intermediate Language (MSIL), it also produces Metadata. The Microsoft Intermediate Language (MSIL) and Metadata are contained in a portable executable (PE) file . Microsoft Intermediate Language (MSIL) includes instructions for loading, storing, initializing, and calling methods on objects, as well as instructions for arithmetic and logical operations, control flow, direct memory access, exception handling, and other operations.

Common Language Runtime

The Common Language Runtime (CLR) is an Execution Environment . It works as a layer between Operating Systems and the applications written in .Net languages that conforms to the Common Language Specification (CLS). The main function of Common Language Runtime (CLR) is to convert the Managed Code into native code and then execute the Program. The Managed Code compiled only when it needed, that is it converts the appropriate instructions when each function is called . The Common Language Runtime (CLR) 's Just In Time (JIT) compilation converts Intermediate Language (MSIL) to native code on demand at application run time.

During the execution of the program ,the Common Language Runtime (CLR) manages memory, Thread execution, Garbage Collection (GC) , Exception Handling, Common Type System (CTS), code safety verifications, and other system services. The CLR ( Common Language Runtime ) defines the Common Type System (CTS), which is a standard type system used by all .Net languages . That means all .NET programming languages uses the same representation for common Data Types , so Common Language Runtime (CLR) is a language-independent runtime environment . The Common Language Runtime (CLR) environment is also referred to as a managed environment, because during the execution of a program it also controls the interaction with the Operating System. In the coming section you can see what are the main functions of Common Language Runtime (CLR).



Just In Time Compiler - JIT

The .Net languages , which is conforms to the Common Language Specification (CLS), uses its corresponding runtime to run the application on different Operating Systems . During the code execution time, the Managed Code compiled only when it is needed, that is it converts the appropriate instructions to the native code for execution just before when each function is called. This process is called Just In Time (JIT) compilation, also known as Dynamic Translation . With the help of Just In Time Compiler (JIT) the Common Language Runtime (CLR) doing these tasks.

The Common Language Runtime (CLR) provides various Just In Time compilers (JIT) and each works on a different architecture depending on Operating System. That is why the same Microsoft Intermediate Language (MSIL) can be executed on different Operating Systems without rewrite the source code. Just In Time (JIT) compilation preserves memory and save time during application initialization. Just In Time (JIT) compilation is used to run at high speed, after an initial phase of slow interpretation. Just In Time Compiler (JIT) code generally offers far better performance than interpreters.

Common Language Specification - CLS

Common Language Specification (CLS) is a set of basic language features that .Net Languages needed to develop Applications and Services , which are compatible with the .Net Framework. When there is a situation to communicate Objects written in different .Net Complaint languages , those objects must expose the features that are common to all the languages . Common Language Specification (CLS) ensures complete interoperability among applications, regardless of the language used to create the application.

Common Language Specification (CLS) defines a subset of Common Type System (CTS) . Common Type System (CTS) describes a set of types that can use different .Net languages have in common , which ensure that objects written in different languages can interact with each other. Most of the members defined by types in the .NET Framework Class Library (FCL) are Common Language Specification (CLS) compliant Types. Moreover Common Language Specification (CLS) standardized by ECMA .

Common Type System - CTS

Common Type System (CTS) describes a set of types that can be used in different .Net languages in common . That is , the Common Type System (CTS) ensure that objects written in different .Net languages can interact with each other. For Communicating between programs written in any .NET complaint language, the types have to be compatible on the basic level .

These types can be Value Types or Reference Types . The Value Types are passed by values and stored in the stack. The Reference Types are passed by references and stored in the heap. Common Type System (CTS) provides base set of Data Types which is responsible for cross language integration. The Common Language Runtime (CLR) can load and execute the source code written in any .Net language, only if the type is described in the Common Type System (CTS) .Most of the members defined by types in the .NET Framework Class Library (FCL) are Common Language Specification (CLS) compliant Types.



Portable Executable (PE) File Format

The Portable Executable (PE) format is a file format for executables, object code, and DLLs, used in 32-bit and 64-bit versions of Windows operating systems.

The PE file format was defined to provide the best way for the Windows Operating System to execute code and also to store the essential data which is needed to run a program. Portable Executable File Format is derived from the Microsoft Common Object File Format (COFF).

Network Devices (Hub, Repeater, Bridge, Switch, Router and Gateways)

 1. Repeater – A repeater operates at the physical layer. Its job is to regenerate the signal over the same network before the signal becomes too weak or corrupted so as to extend the length to which the signal can be transmitted over the same network. An important point to be noted about repeaters is that they do no amplify the signal. When the signal becomes weak, they copy the signal bit by bit and regenerate it at the original strength. It is a 2 port device.

2. Hub –  A hub is basically a multiport repeater. A hub connects multiple wires coming from different branches, for example, the connector in star topology which connects different stations. Hubs cannot filter data, so data packets are sent to all connected devices.  In other words, collision domain of all hosts connected through Hub remains one.  Also, they do not have intelligence to find out best path for data packets which leads to inefficiencies and wastage.

3. Bridge – A bridge operates at data link layer. A bridge is a repeater, with add on functionality of filtering content by reading the MAC addresses of source and destination. It is also used for interconnecting two LANs working on the same protocol. It has a single input and single output port, thus making it a 2 port device.

4. Switch – A switch is a multi port bridge with a buffer and a design that can boost its efficiency(large number of  ports imply less traffic) and performance. Switch is data link layer device. Switch can perform error checking before forwarding data, that makes it very efficient as it does not forward packets that have errors and  forward good packets selectively to correct port only.  In other words, switch divides collision domain of hosts, but broadcast domain remains same.

5. Routers – A router is a device like a switch that routes data packets based on their IP addresses. Router is mainly a Network Layer device. Routers normally connect LANs and WANs together and have a dynamically updating routing table based on which they make decisions on routing the data packets. Router divide broadcast domains of hosts connected through it.

Network Switching

Switching is process to forward packets coming in from one port to a port leading towards the destination. When data comes on a port it is called ingress, and when data leaves a port or goes out it is called egress. A communication system may include number of switches and nodes. At broad level, switching can be divided into two major categories:

• Connectionless: The data is forwarded on behalf of forwarding tables. No previous handshaking is required and acknowledgements are optional.
• Connection Oriented:  Before switching data to be forwarded to destination, there is a need to pre-establish circuit along the path between both endpoints. Data is then forwarded on that circuit. After the transfer is completed, circuits can be kept for future use or can be turned down immediately.

Circuit Switching

When two nodes communicate with each other over a dedicated communication path, it is called circuit switching.There 'is a need of pre-specified route from which data will travels and no other data is permitted.In circuit switching, to transfer the data, circuit must be established so that the data transfer can take place.
Circuits can be permanent or temporary. Applications which use circuit switching may have to go through three phases:

• Establish a circuit
• Transfer the data
• Disconnect the circuit



Circuit switching was designed for voice applications. Telephone is the best suitable example of circuit switching. Before a user can make a call, a virtual path between caller and callee is established over the network.

Message Switching

This technique was somewhere in middle of circuit switching and packet switching. In message switching, the whole message is treated as a data unit and is switching / transferred in its entirety.
A switch working on message switching, first receives the whole message and buffers it until there are resources available to transfer it to the next hop. If the next hop is not having enough resource to accommodate large size message, the message is stored and switch waits.

This technique was considered substitute to circuit switching. As in circuit switching the whole path is blocked for two entities only. Message switching is replaced by packet switching. Message switching has the following drawbacks:

• Every switch in transit path needs enough storage to accommodate entire message.
• Because of store-and-forward technique and waits included until resources are available, message switching is very slow.
• Message switching was not a solution for streaming media and real-time applications.

Packet Switching

Shortcomings of message switching gave birth to an idea of packet switching. The entire message is broken down into smaller chunks called packets. The switching information is added in the header of each packet and transmitted independently.
It is easier for intermediate networking devices to store small size packets and they do not take much resources either on carrier path or in the internal memory of switches.

 Packet switching enhances line efficiency as packets from multiple applications can be multiplexed over the carrier. The internet uses packet switching technique. Packet switching enables the user to differentiate data streams based on priorities. Packets are stored and forwarded according to their priority to provide quality of service.

 Difference between Circuit switching & Packet switching



Multiplexing

Multiplexing is a technique by which different analog and digital streams of transmission can be simultaneously processed over a shared link. Multiplexing divides the high capacity medium into low capacity logical medium which is then shared by different streams.
Communication is possible over the air (radio frequency), using a physical media (cable), and light (optical fiber). All mediums are capable of multiplexing.
When multiple senders try to send over a single medium, a device called Multiplexer divides the physical channel and allocates one to each. On the other end of communication, a De-multiplexer receives data from a single medium, identifies each, and sends to differe

nt receivers.

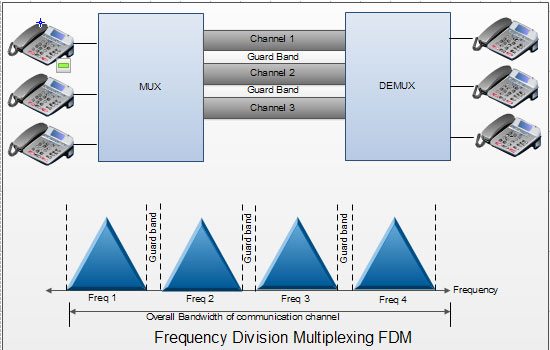

Frequency Division Multiplexing

When the carrier is frequency, FDM is used. FDM is an analog technology. FDM divides the spectrum or carrier bandwidth in logical channels and allocates one user to each channel. Each user can use the channel frequency independently and has exclusive access of it. All channels are divided in such a way that they do not overlap with each other. Channels are separated by guard bands. Guard band is a frequency which is not used by either channel.

Time Division Multiplexing

TDM is applied primarily on digital signals but can be applied on analog signals as well. In TDM the shared channel is divided among its user by means of time slot. Each user can transmit data within the provided time slot only. Digital signals are divided in frames, equivalent to time slot i.e. frame of an optimal size which can be transmitted in given time slot.
TDM works in synchronized mode. Both ends, i.e. Multiplexer and De-multiplexer are timely synchronized and both switch to next channel simultaneously.



When channel A transmits its frame at one end,the De-multiplexer provides media to channel A on the other end.As soon as the channel A’s time slot expires, this side switches to channel B. On the other end, the De-multiplexer works in a synchronized manner and provides media to channel B. Signals from different channels travel the path in interleaved manner.

Wavelength Division Multiplexing

Light has different wavelength (colors). In fiber optic mode, multiple optical carrier signals are multiplexed into an optical fiber by using different wavelengths. This is an analog multiplexing technique and is done conceptually in the same manner as FDM but uses light as signals.



Further, on each wavelength time division multiplexing can be incorporated to accommodate more data signals.

Code Division Multiplexing

Multiple data signals can be transmitted over a single frequency by using Code Division Multiplexing. FDM divides the frequency in smaller channels but CDM allows its users to full bandwidth and transmit signals all the time using a unique code. CDM uses orthogonal codes to spread signals.
Each station is assigned with a unique code, called chip. Signals travel with these codes independently, inside the whole bandwidth.The receiver knows in advance the chip code signal it has to receive.

---

DIFFERENCES B/W Strong Entity Set and Weak Entity Set, DBMS and RDBMS,DBMS and FILE SYSTEM

Comparison between Strong Entity Set and Weak Entity Set is as follows:

Comparison between DBMS and RDBMS is as follows:

Comparison between DBMS and FILE SYSTEM is as follows:

Generalization,Specialization And Aggregration

The ER Model has the power of expressing database entities in a conceptual hierarchical manner. As the hierarchy goes up, it generalizes the view of entities, and as we go deep in the hierarchy, it gives us the detail of every entity included.
Going up in this structure is called generalization, where entities are clubbed together to represent a more generalized view. For example, a particular student named Mira can be generalized along with all the students. The entity shall be a student, and further, the student is a person. The reverse is called specialization where a person is a student, and that student is Mira.

Generalization

As mentioned above, the process of generalizing entities, where the generalized entities contain the properties of all the generalized entities, is called generalization. In generalization, a number of entities are brought together into one generalized entity based on their similar characteristics. For example, pigeon, house sparrow, crow and dove can all be generalized as Birds.

Specialization

Specialization is the opposite of generalization. In specialization, a group of entities is divided into sub-groups based on their characteristics. Take a group ‘Person’ for example. A person has name, date of birth, gender, etc. These properties are common in all persons, human beings. But in a company, persons can be identified as employee, employer, customer, or vendor, based on what role they play in the company.

Aggregration

Aggregration is a process when relation between two entity is treated as a single entity. Here the relation between Center and Course, is acting as an Entity in relation with Visitor.

E-R Diagram symbols and Notations

E-R Diagram

ER-Diagram is a visual representation of data that describes how data is related to each other.

 Symbols and Notations

Components of E-R Diagram

The E-R diagram has three main components.

1) Entity

An Entity can be any object, place, person or class. In E-R Diagram, an entity is represented using rectangles. Consider an example of an Organisation. Employee, Manager, Department, Product and many more can be taken as entities from an Organisation.

Weak Entity

Weak entity is an entity that depends on another entity. Weak entity doen't have key attribute of their own. Double rectangle represents weak entity.

2) Attribute

An Attribute describes a property or characterstic of an entity. For example, Name, Age, Address etc can be attributes of a Student. An attribute is represented using eclipse.

Key Attribute

Key attribute represents the main characterstic of an Entity. It is used to represent Primary key. Ellipse with underlying lines represent Key Attribute.

Composite Attribute

An attribute can also have their own attributes. These attributes are known as Composite attribute.

3) Relationship

A Relationship describes relations between entities. Relationship is represented using diamonds.

There are three types of relationship that exist between Entities.

• Binary Relationship
• Recursive Relationship
• Ternary Relationship

Binary Relationship

Binary Relationship means relation between two Entities. This is further divided into three types.
One to One : This type of relationship is rarely seen in real world.

The above example describes that one student can enroll only for one course and a course will also have only one Student. This is not what you will usually see in relationship.

One to Many : It reflects business rule that one entity is associated with many number of same entity. The example for this relation might sound a little weird, but this menas that one student can enroll to many courses, but one course will have one Student.

The arrows in the diagram describes that one student can enroll for only one course.

Many to One : It reflects business rule that many entities can be associated with just one entity. For example, Student enrolls for only one Course but a Course can have many Students.

Many to Many :

The above diagram represents that many students can enroll for more than one courses.

Recursive Relationship

Ternary Relationship

Relationship of degree three is called Ternary relationship

Transmission Mediums in Computer Networks

Transmission Mediums in Computer Networks

Data is represented by computers and other telecommunication devices using signals. Signals are transmitted in the form of electromagnetic energy from one device to another. Electromagnetic signals travel through vacuum, air or other transmission mediums to travel between one point to another(from source to receiver).

Electromagnetic energy (includes electrical and magnetic fields) includes power, voice, visible light, radio waves, ultraviolet light, gamma rays etc.

Transmission medium is the means through which we send our data from one place to another.

Bounded/Guided Transmission Media

It is the transmission media in which signals are confined to a specific path using wire or cable. The types of Bounded/ Guided are discussed below.

---

Twisted Pair Cable

This cable is the most commonly used and is cheaper than others. It is lightweight, cheap, can be installed easily, and they support many different types of network. Some important points :

• Its frequency range is 0 to 3.5 kHz.
• Typical attenuation is 0.2 dB/Km @ 1kHz.
• Typical delay is 50 µs/km.
• Repeater spacing is 2km.

Twisted Pair is of two types :

• Unshielded Twisted Pair (UTP)
• Shielded Twisted Pair (STP)

---

Unshielded Twisted Pair Cable

It is the most common type of telecommunication when compared with Shielded Twisted Pair Cable which consists of two conductors usually copper, each with its own colour plastic insulator. Identification is the reason behind coloured plastic insulation.

UTP cables consist of 2 or 4 pairs of twisted cable. Cable with 2 pair use RJ-11 connector and 4 pair cable use RJ-45 connector.

Advantages :

• Installation is easy
• Flexible
• Cheap
• It has high speed capacity,
• 100 meter limit
• Higher grades of UTP are used in LAN technologies like Ethernet.

It consists of two insulating copper wires (1mm thick). The wires are twisted together in a helical form to reduce electrical interference from similar pair.

Disadvantages :

• Bandwidth is low when compared with Coaxial Cable
• Provides less protection from interference.

---

Shielded Twisted Pair Cable

This cable has a metal foil or braided-mesh covering which encases each pair of insulated conductors. Electromagnetic noise penetration is prevented by metal casing. Shielding also eliminates crosstalk (explained in KEY TERMS Chapter).

It has same attenuation as unshielded twisted pair. It is faster the unshielded and coaxial cable. It is more expensive than coaxial and unshielded twisted pair.

Advantages :

• Easy to install
• Performance is adequate
• Can be used for Analog or Digital transmission
• Increases the signalling rate
• Higher capacity than unshielded twisted pair
• Eliminates crosstalk

Disadvantages :

• Difficult to manufacture
• Heavy

---

Coaxial Cable

Coaxial is called by this name because it contains two conductors that are parallel to each other. Copper is used in this as centre conductor which can be a solid wire or a standard one. It is surrounded by PVC installation, a sheath which is encased in an outer conductor of metal foil, barid or both.

Outer metallic wrapping is used as a shield against noise and as the second conductor which completes the circuit. The outer conductor is also encased in an insulating sheath. The outermost part is the plastic cover which protects the whole cable.

Here the most common coaxial standards.

• 50-Ohm RG-7 or RG-11 : used with thick Ethernet.
• 50-Ohm RG-58 : used with thin Ethernet
• 75-Ohm RG-59 : used with cable television
• 93-Ohm RG-62 : used with ARCNET.

There are two types of Coaxial cables :

BaseBand

This is a 50 ohm (Ω) coaxial cable which is used for digital transmission. It is mostly used for LAN's. Baseband transmits a single signal at a time with very high speed. The major drawback is that it needs amplification after every 1000 feet.

BroadBand

This uses analog transmission on standard cable television cabling. It transmits several simultaneous signal using different frequencies. It covers large area when compared with Baseband Coaxial Cable.

Advantages :

• Bandwidth is high
• Used in long distance telephone lines.
• Transmits digital signals at a very high rate of 10Mbps.
• Much higher noise immunity
• Data transmission without distortion.
• The can span to longer distance at higher speeds as they have better shielding when compared to twisted pair cable

Disadvantages :

• Single cable failure can fail the entire network.
• Difficult to install and expensive when compared with twisted pair.
• If the shield is imperfect, it can lead to grounded loop.

---

Fiber Optic Cable

These are similar to coaxial cable. It uses electric signals to transmit data. At the centre is the glass core through which light propagates.

In multimode fibres, the core is 50microns, and In single mode fibres, the thickness is 8 to 10 microns.

The core in fiber optic cable is surrounded by glass cladding with lower index of refraction as compared to core to keep all the light in core. This is covered with a thin plastic jacket to protect the cladding. The fibers are grouped together in bundles protected by an outer shield.

Fiber optic cable has bandwidth more than 2 gbps (Gigabytes per Second)

Advantages :

• Provides high quality transmission of signals at very high speed.
• These are not affected by electromagnetic interference, so noise and distortion is very less.
• Used for both analog and digital signals.

Disadvantages :

• It is expensive
• Difficult to install.
• Maintenance is expensive and difficult.
• Do not allow complete routing of light signals.

UnBounded/UnGuided Transmission Media

Unguided or wireless media sends the data through air (or water), which is available to anyone who has a device capable of receiving them. Types of unguided/ unbounded media are discussed below :

• Radio Transmission
• MicroWave Transmission

---

Radio Transmission

Its frequency is between 10 kHz to 1GHz. It is simple to install and has high attenuation. These waves are used for multicast communications.

Types of Propogation

Radio Transmission utilizes different types of propogation :

• Troposphere : The lowest portion of earth's atmosphere extending outward approximately 30 miles from the earth's surface. Clouds, jet planes, wind is found here.
• Ionosphere : The layer of the atmosphere above troposphere, but below space. Contains electrically charged particles.

---

Microwave Transmission

It travels at high frequency than the radio waves. It requires the sender to be inside of the receiver. It operates in a system with a low gigahertz range. It is mostly used for unicast communication.

There are 2 types of Microwave Transmission :

1. Terrestrial Microwave
2. Satellite Microwave

Advantages of Microwave Transmission

• Used for long distance telephone communication
• Carries 1000's of voice channels at the same time

Disadvantages of Microwave Transmission

• It is Very costly

---

Terrestrial Microwave

For increasing the distance served by terrestrial microwave, repeaters can be installed with each antenna .The signal received by an antenna can be converted into transmittable form and relayed to next antenna as shown in below figure. It is an example of telephone systems all over the world

There are two types of antennas used for terrestrial microwave communication :

1. Parabolic Dish Antenna

In this every line parallel to the line of symmetry reflects off the curve at angles in a way that they intersect at a common point called focus. This antenna is based on geometry of parabola.

2. Horn Antenna

It is a like gigantic scoop. The outgoing transmissions are broadcast up a stem and deflected outward in a series of narrow parallel beams by curved head.

Satellite Microwave

This is a microwave relay station which is placed in outer space. The satellites are launched either by rockets or space shuttles carry them.

These are positioned 36000KM above the equator with an orbit speed that exactly matches the rotation speed of the earth. As the satellite is positioned in a geo-synchronous orbit, it is stationery relative to earth and always stays over the same point on the ground. This is usually done to allow ground stations to aim antenna at a fixed point in the sky.

Features of Satellite Microwave :

• Bandwidth capacity depends on the frequency used.
• Satellite microwave deployment for orbiting satellite is difficult.

Advantages of Satellite Microwave :

• Transmitting station can receive back its own transmission and check whether the satellite has transmitted information correctly.
• A single microwave relay station which is visible from any point.

Disadvantages of Satellite Microwave :

• Satellite manufacturing cost is very high
• Cost of launching satellite is very expensive
• Transmission highly depends on whether conditions, it can go down in bad weather

---

Transmission Modes

Transmission Modes - What are the different Transmission Modes?

The term Transmission Mode defines the direction of the flow of information between two communication devices i.e. it tells the direction of signal flow between the two devices.

There are three ways or modes of data transmission: Simplex, Half duplex (HDX), Full duplex (FDX)

Simplex:

 In Communication Networks, Communication can take place in one direction connected to such a circuit are either a send only or receive only device. There is no mechanism for information to be transmitted back to the sender. Communication is unidirectional. TV broadcasting is an example. Simplex transmission generally involves dedicated circuits. Simplex circuits are analogous to escalators, doorbells, fire alarms and security systems:

Half Duplex:

 A half duplex system can transmit data in both directions, but only in one direction at a time that mean half duplex modes support two-way traffic but in only one direction at a time. The interactive transmission of data within a time sharing system may be best suited to half-duplex lines. Both the connected devices can transmit and receive but not simultaneously. When one device is sending the other can only receive and vice-versa. Data is transmitted in one direction at.a time, for example. a walkie-talkie.

This is generally used for relatively low-speed transmission, usually involving two-wire, analog circuits. Due to switching of communication direction, data transmission in this mode requires more time and processes than under full duplex mode. Examples of half duplex application include line printers, polling of buffers, and modem commuriications (many modems can support full duplex also).

Example of half duplex mode:



A walkie-talkie operates in half duplex mode. It can only send or receive a transmission at any given time. It cannot do both at the same time.

Full Duplex:

 A full duplex system can transmit data simultaneously in both directions on transmission path. Full-duplex method is used to transmit the data over a serial communication link. Two wires needed to send data over a serial communication link layer. Full-duplex transmission, the channel capacity is shared by both communicating devices at all times.

Both the connected devices can transmit and receive at the same time. Therefore it represents truly bi-directional system. The link may contain two separate transmission paths one for sending and another for receiving.

Example of Full duplex mode:

Telephone networks operate in full duplex mode when two persons talk on telephone line, both can listen and speak simultaneously.
